Laser Welding Machine ETL-LS2000

  • Brand：   ETL
  • Model：   ETL-LS2000
    • The ETL-LS2000 Laser Welding Machine is a high-performance handheld fiber laser welding solution designed for industrial metal fabrication. Offering exceptional welding speed and high joint strength, the ETL-LS2000 is perfect for processing stainless steel, aluminum, and carbon steel with minimal thermal deformation. Its ergonomic design and intelligent control system make it easy to operate for both complex tasks and high-volume production, ensuring professional-grade results every time.

    hdjg@etl-laser.com

    • Description
    • Viedos

      ETL-LS2000: 2000W 3-in-1 Handheld Laser Welding, Cutting, and Cleaning Machine

         Upgrade with the ETL-LS2000 3-in-1 Laser Machine. This 2000W industrial tool integrates welding, cutting, and cleaning into one handheld device. Perfect for heavy-duty metal fabrication including stainless steel and aluminum. Contact Ever Tech Laser for high-efficiency, multi-purpose laser solutions!

      Applicable Materials & Industries

      • Materials: Excellent for Stainless Steel (up to 5-6mm), Carbon Steel (up to 5-6mm), Aluminum Alloy (up to 4mm), Copper, and Galvanized Sheets. Also ideal for removing heavy rust, thick paint, and oxide layers during cleaning.

      • Industries:

        • Heavy Machinery: Welding and rust removal for large structural frames.

        • Shipbuilding & Marine: High-strength anti-corrosive welding and hull cleaning.

        • Automotive Manufacturing: Body assembly and laser cleaning before painting.

        • Construction & Bridges: On-site metal cutting, welding, and surface preparation.

        • Large-scale Tank Fabrication: Seamless welding for pressure vessels and containers.

      Core Specifications of ETL-LS2000:

      Feature Specification
      Model ETL-LS2000 (3-in-1 Integrated)
      Laser Power 2000W Continuous Fiber Laser
      Functions Laser Welding, Laser Cutting, Laser Cleaning
      Cooling System High-capacity Industrial Water Chiller (dual-circuit)
      Cleaning Width 10mm - 80mm (Adjustable for deep cleaning)
      Welding Depth Up to 6.0mm (depending on material)
      Torch Type Advanced 3-in-1 Handheld Smart Torch with quick-change nozzles
      Fiber Cable 10m - 15m (Optional extension for large workpieces)

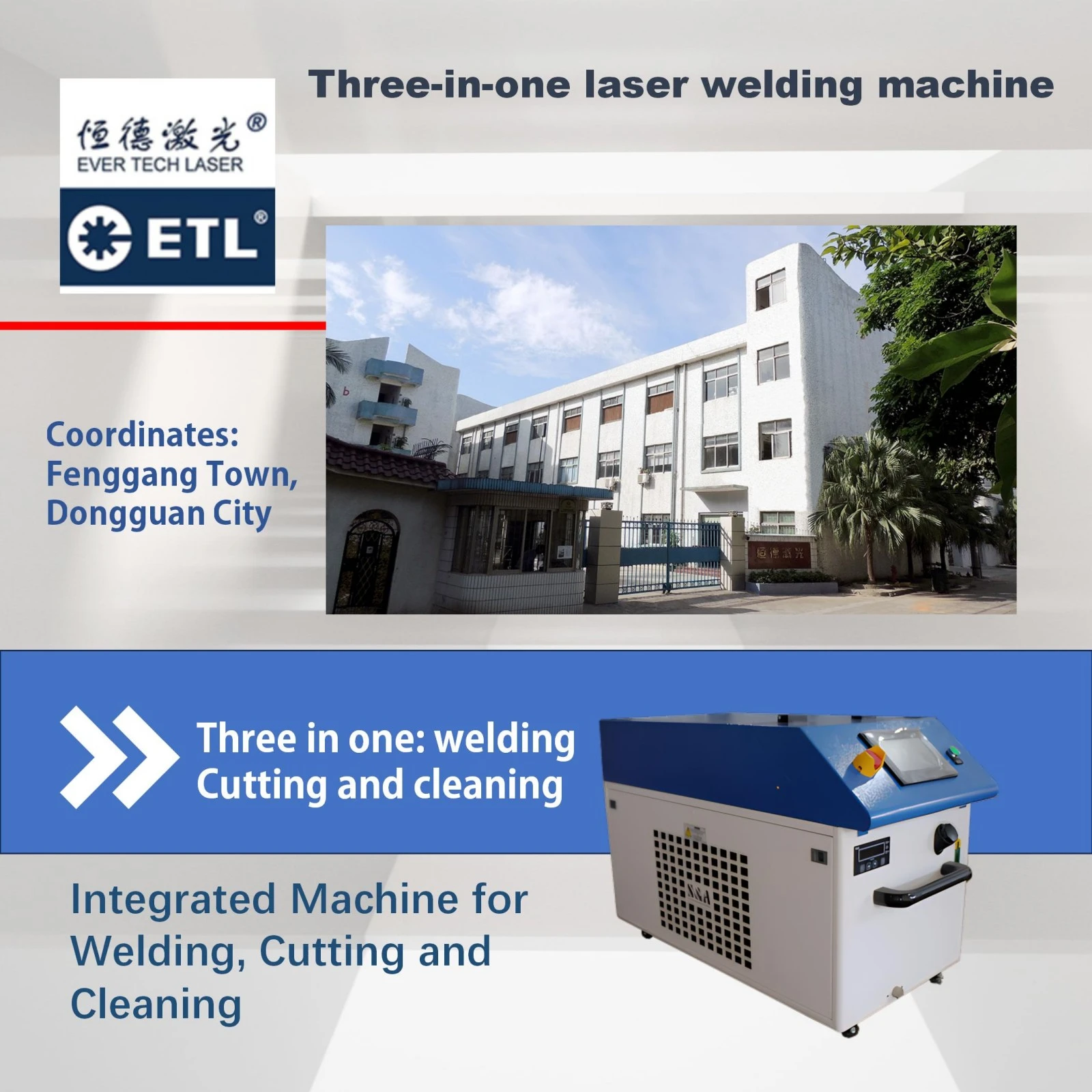

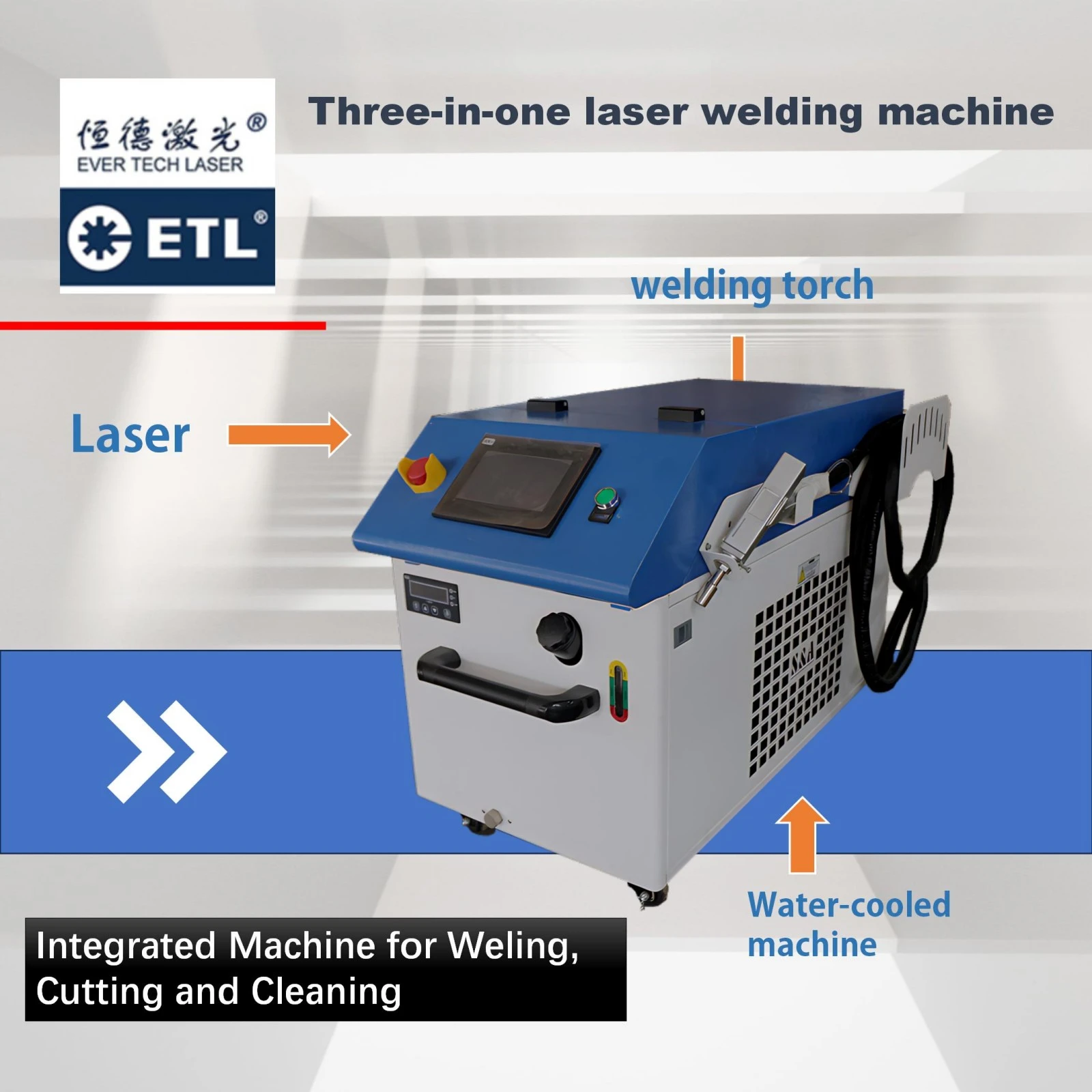

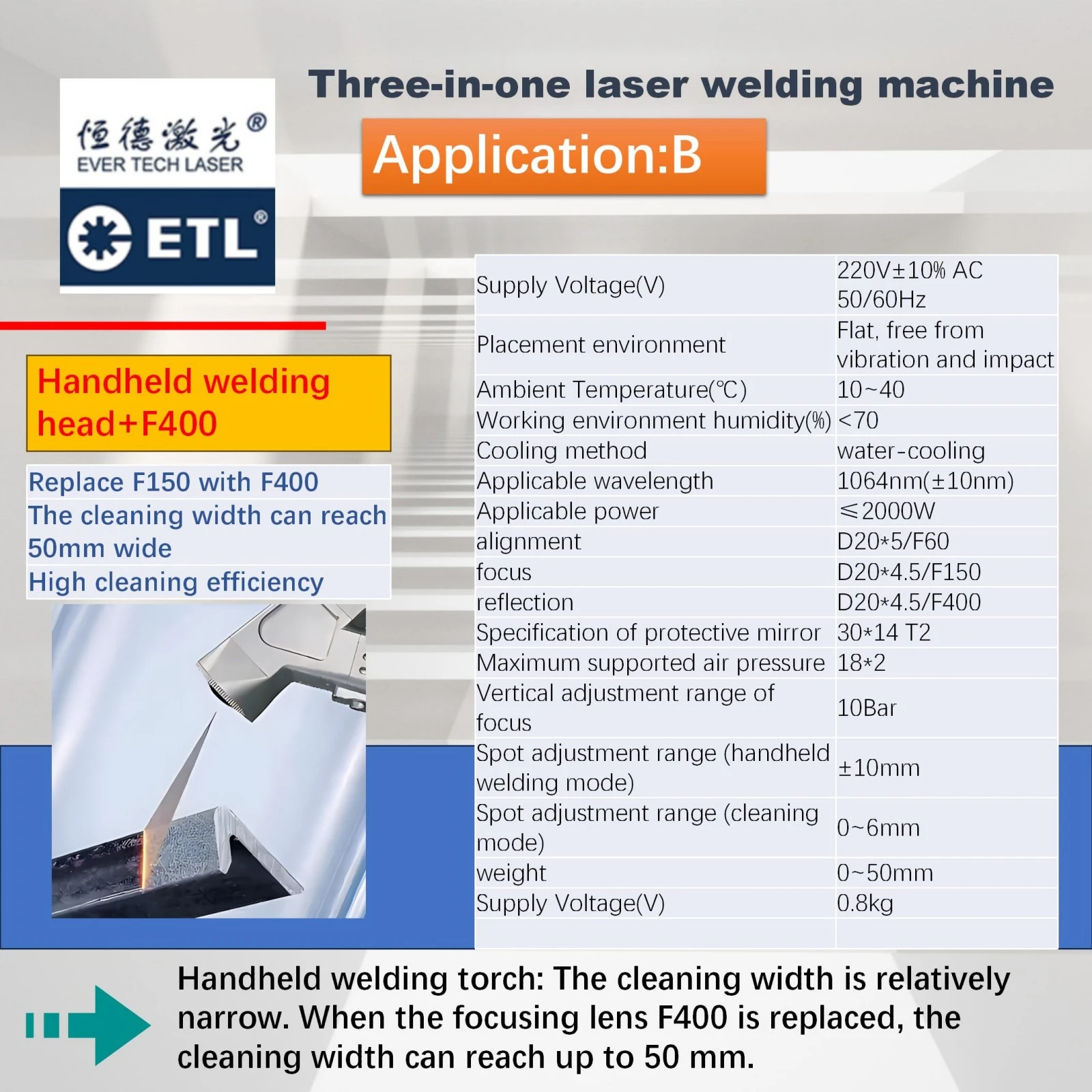

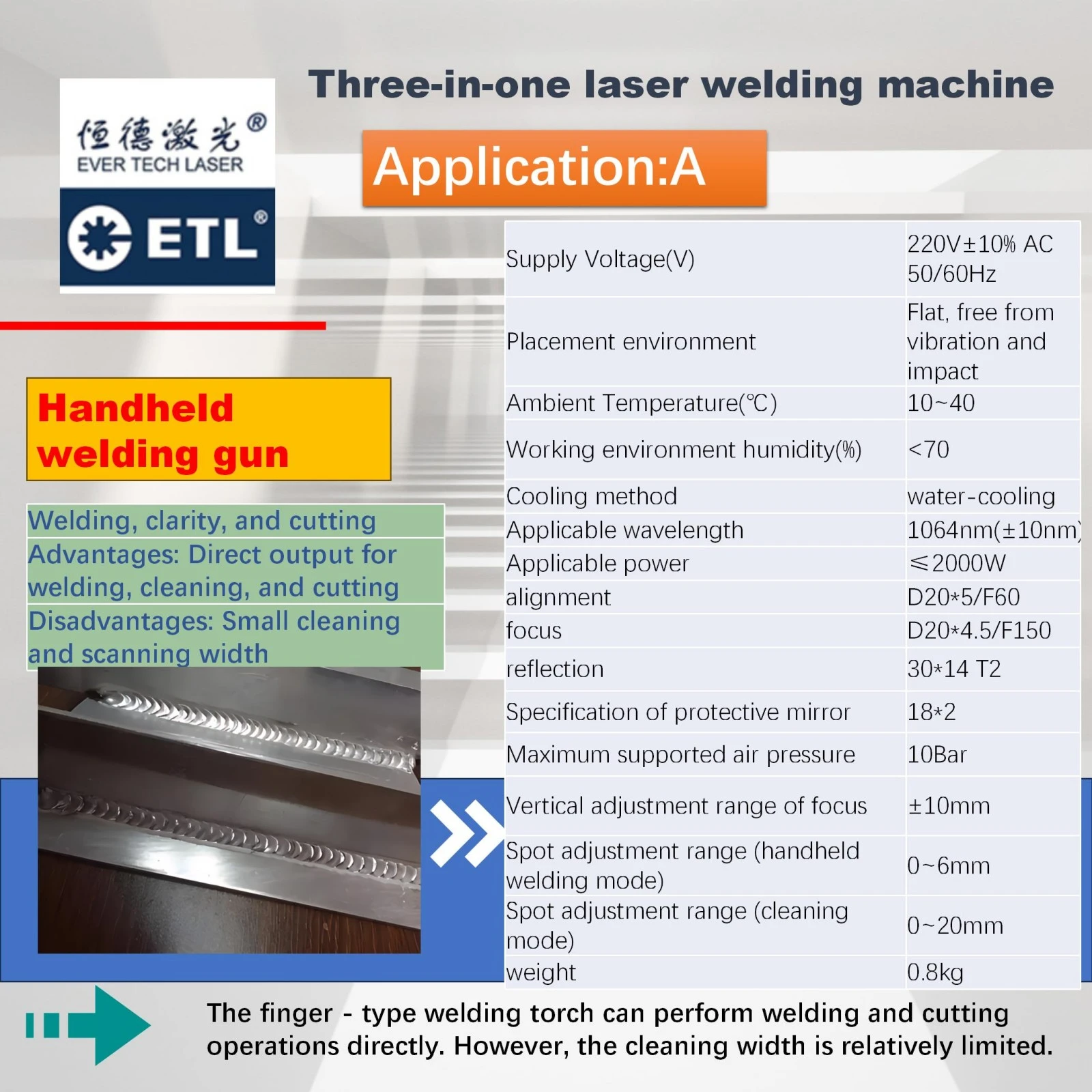

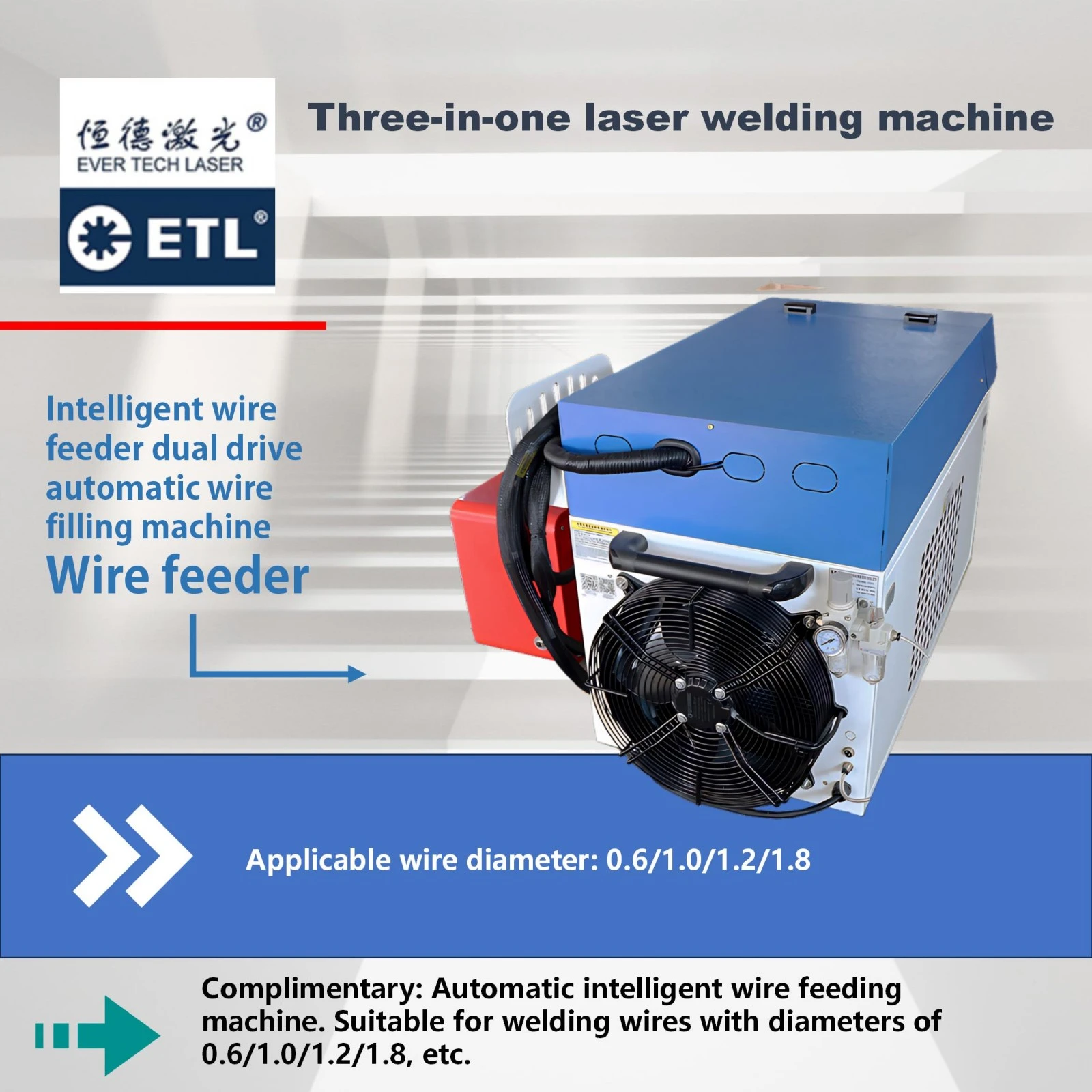

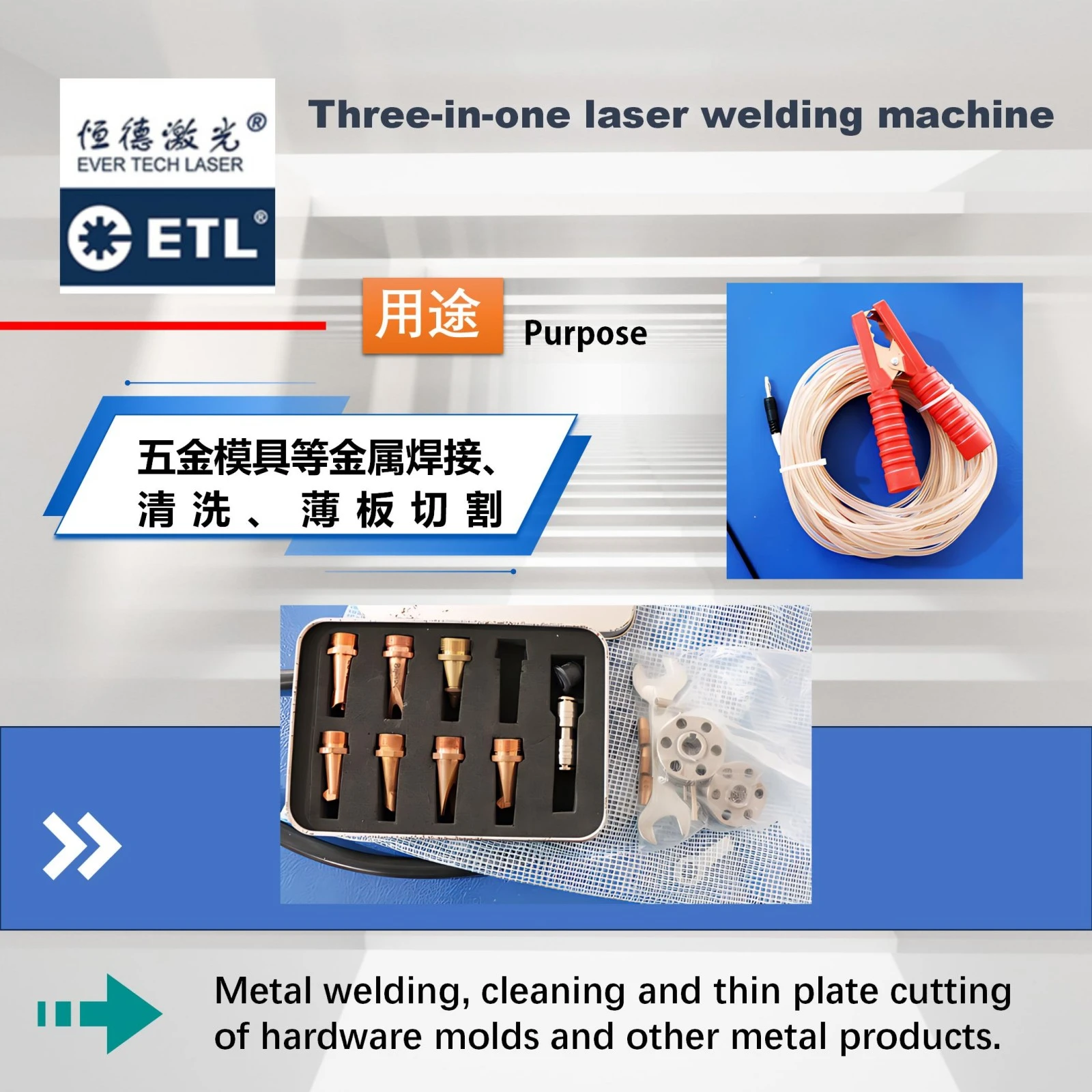

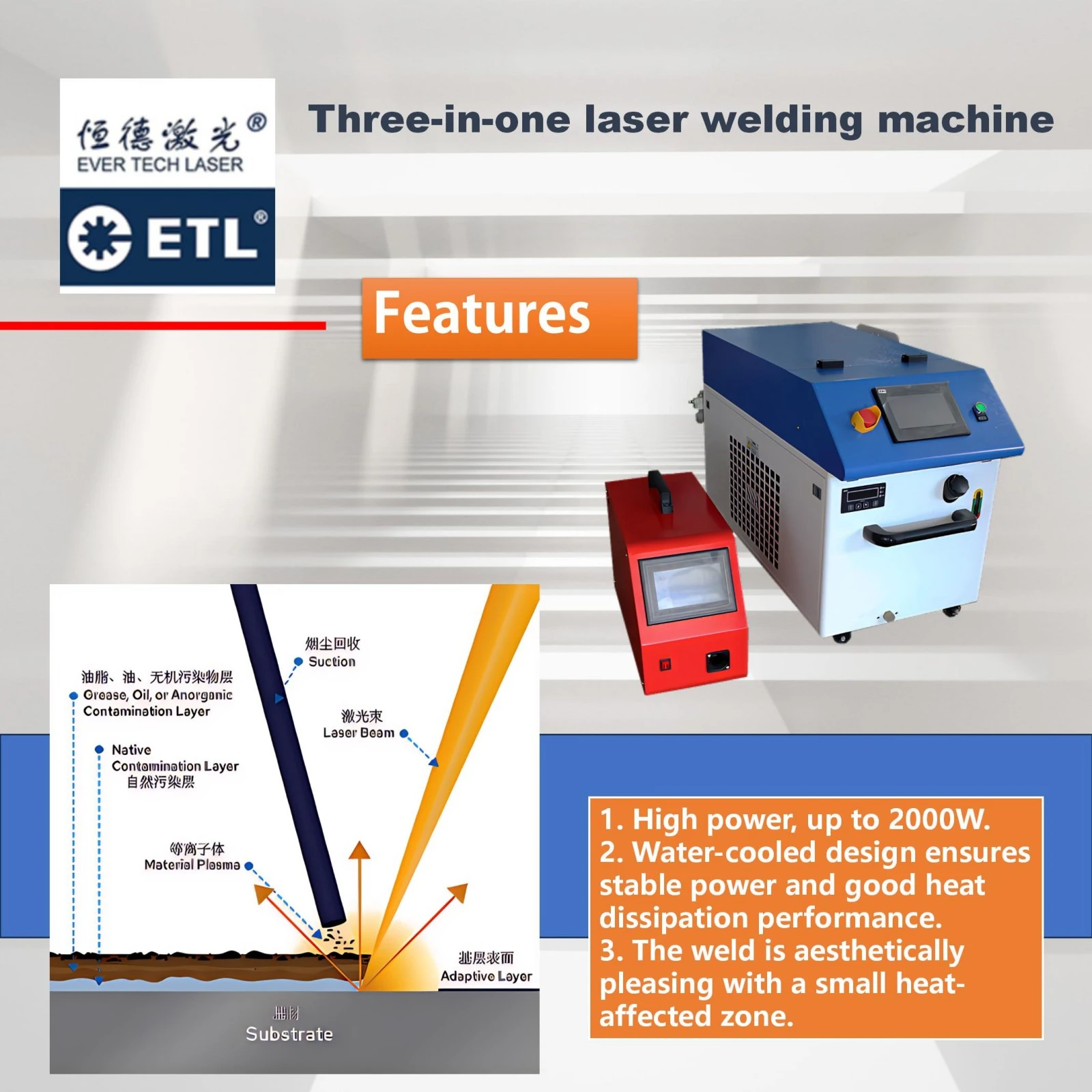

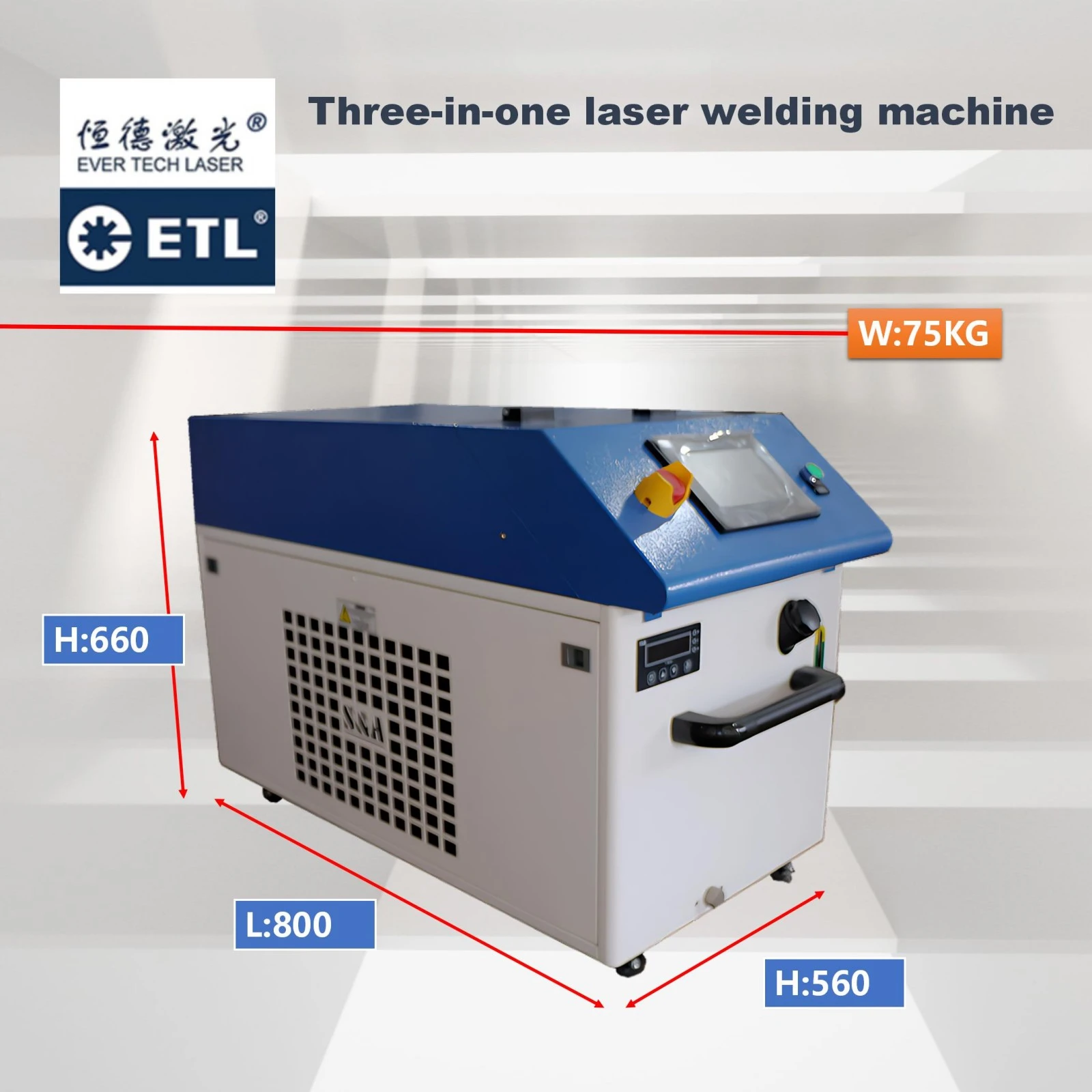

      Ever Tech Laser ETL-LS2000 industrial 3-in-1 handheld laser machine for welding, cutting, and cleaning.High-power 2000W fiber laser welding of thick stainless steel sheets using ETL-LS2000 system.Industrial laser rust and oxide layer removal with ETL-LS2000 handheld laser cleaning mode.Precision laser cutting of carbon steel and aluminum plates with ETL-LS2000 2000W integrated machine.Ergonomic handheld 3-in-1 laser torch with quick-change nozzles for ETL-LS2000 welding and cleaning.Smart touch-screen control interface of ETL-LS2000 for seamless switching between laser modes.Internal industrial dual-circuit water cooling system for stable operation of ETL-LS2000 2000W laser.Seamless and high-strength weld joint on aluminum achieved by ETL-LS2000 fiber laser welder.Heavy-duty metal fabrication in automotive and shipbuilding industries using ETL-LS2000 3-in-1 laser.

      ETL-LS750 Laser Welding Machine - FAQ

      Q1: How do I switch between welding, cutting, and cleaning modes on the ETL-LS2000?

      Answer:

      The ETL-LS2000 by Ever Tech Laser is designed for maximum efficiency. Switching modes is incredibly simple:

      1. Change the Nozzle: Swap the specialized nozzle on the handheld torch (takes about 30 seconds).

      2. Switch Mode on Screen: Select the corresponding function (Weld/Cut/Clean) on the intuitive touch-screen interface.

      3. Load Parameters: The system automatically recalls the optimal settings for that specific task. No complex reconfiguration is required.

      Q2: What is the maximum performance of the 2000W ETL-LS2000 in different modes?

      Answer:

      As a high-power industrial solution, the ETL-LS2000 delivers exceptional results:

      • Welding: Penetrates up to 6.0mm in stainless steel and carbon steel, and 4.0mm in aluminum.

      • Cleaning: Removes heavy rust, thick paint, and oxide layers with a cleaning width of up to 80mm.

      • Cutting: Easily performs precision cuts on metal sheets up to 5.0mm thick for emergency or onsite needs.

      Q3:Can the ETL-LS2000 handle continuous high-power operation without overheating?

      Answer:

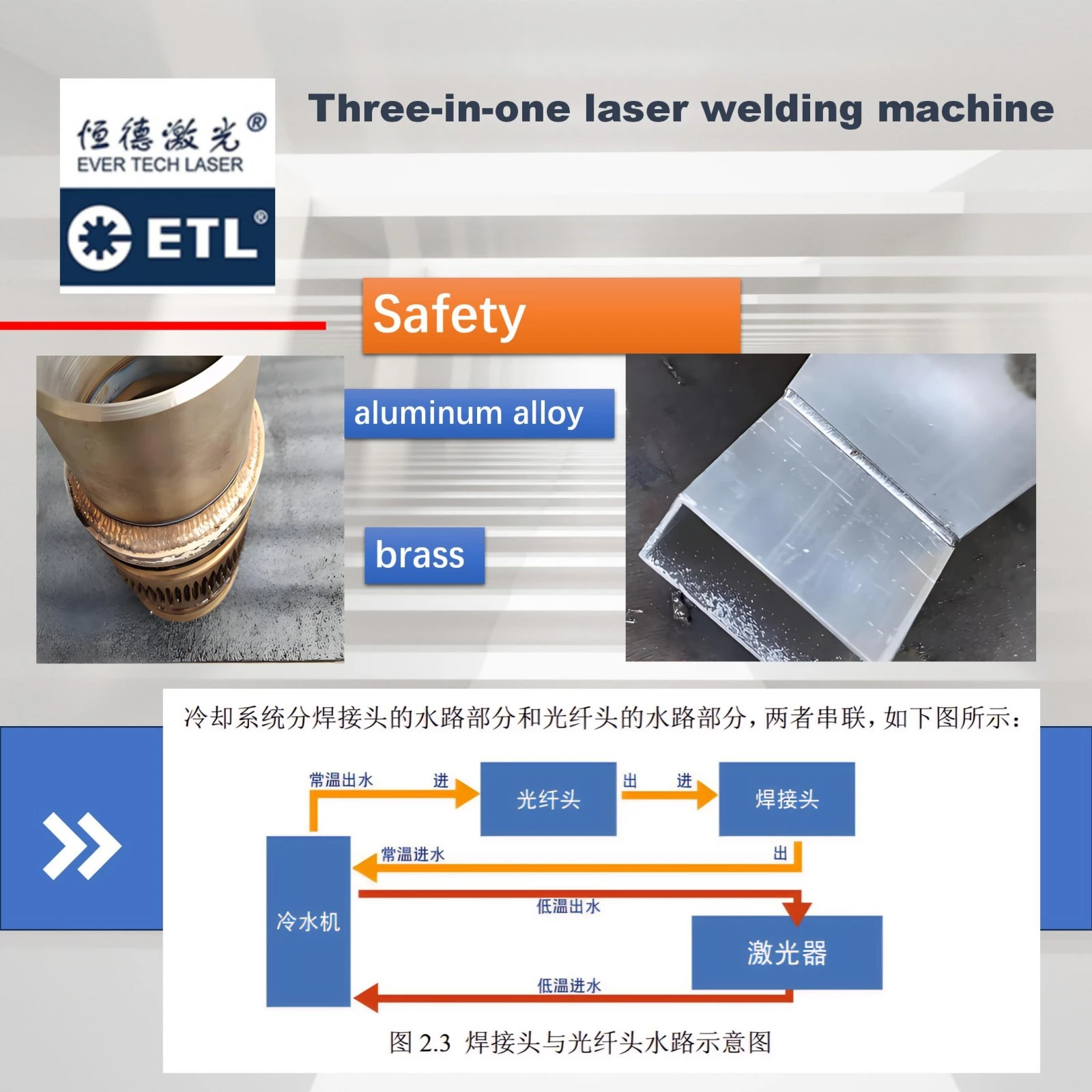

      Yes. Stability is the hallmark of Ever Tech Laser equipment. The ETL-LS2000 is equipped with a high-capacity industrial dual-circuit water chiller. This system independently cools both the laser source and the welding head, ensuring 24/7 stable operation even at full 2000W output in demanding factory environments.

      Q4: How does the ETL-LS2000 3-in-1 machine save costs for my business?

      Answer:

      Investing in the ETL-LS2000 provides a superior ROI compared to buying three separate machines:

      • Lower Capex: One machine costs significantly less than three dedicated units.

      • Space Saving: Consolidates your workspace by replacing three bulky power sources with one compact mobile station.

      • Reduced Training: Your staff only needs to learn one interface and one maintenance routine


      Q5:How effective is the cleaning function on heavy rust and paint?

      Answer:

      The 2000W fiber laser source provides the high energy density needed for industrial-grade cleaning. Unlike lower-power models, the ETL-LS2000 can instantly vaporize heavy corrosion, thick primers, and stubborn oil stains without damaging the base metal, making it perfect for automotive restoration and heavy machinery maintenance.

      Q6: What safety protections are included with this high-power handheld laser?

      Answer:

      At Ever Tech Laser, operator safety is paramount. The ETL-LS2000 includes:

      • Dual-Safety Interlock: The laser will not fire unless the torch is in contact with the grounded workpiece.

      • Signal Feedback: Real-time monitoring of gas pressure and water temperature.

      • Protective Gear: Every unit comes with professional-grade laser safety goggles and comprehensive safety training.
