Laser Cutting Machine ETL-3D100

  • Brand：   ETL
  • Model：   ETL-3D100
    • The ETL-3D100 Laser Cutting Machine is a high-performance CO2 laser system specifically engineered for precision cutting and engraving of non-metallic materials. Featuring a robust, fully enclosed protective structure, the ETL-3D100 ensures maximum operator safety while delivering clean, smooth edges on acrylic, wood, plastic, and textiles. With its advanced control system and high-stability design, it is the ideal solution for industrial signage, handicraft manufacturing, and complex non-metal fabrication projects.It can be widely applied to the cutting requirements of products with complex three-dimensional curved surface structures such as automotive interiors, cushions, helmets, and medical pads.

    hdjg@etl-laser.com

    • Description
    • Viedos

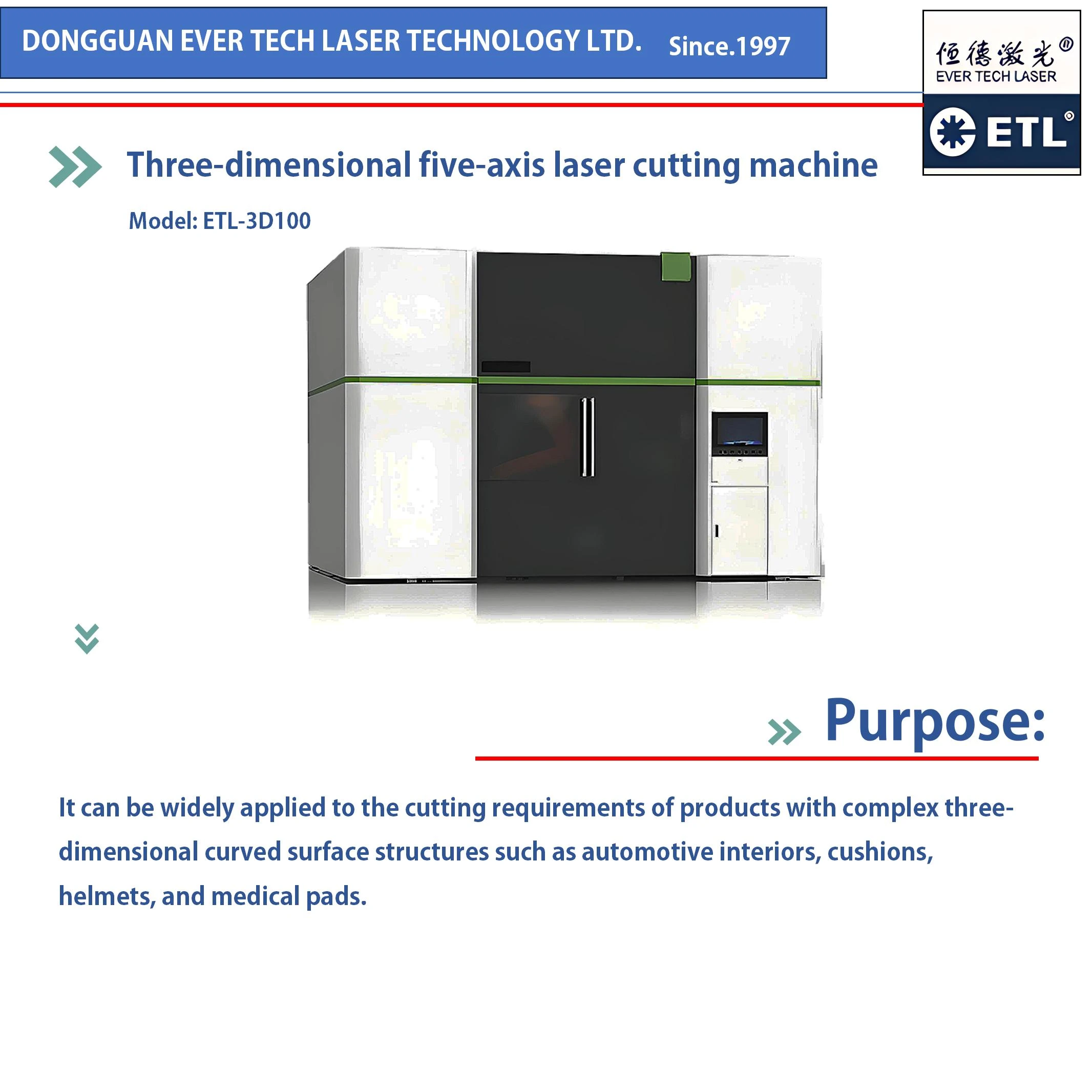

      ETL-3D100 CO2 Laser Cutting Machine

          he ETL-3D100 is a professional-grade CO2 laser cutting machine designed for intricate 3D shapes and high-precision industrial applications. Combining a powerful 100W laser with a sophisticated five-axis motion system, it provides unmatched versatility for complex non-metal cutting and engraving.

      Applicable Materials & Industries

      The ETL-3D100 is optimized for a wide array of non-metallic materials, making it a versatile tool for modern manufacturing:

      • Applicable Materials: Acrylic, Wood, Plywood, MDF, Leather, Fabric, Plastic, Rubber, and specialized 3D composite materials.

      • Target Industries:

        • Automotive Interiors: Precision cutting for car interior decorations and components.

        • Textiles & Home Decor: Ideal for throw pillows, upholstery, and fashion accessories.

        • Safety Equipment: Specialized for complex shapes like protective helmets.

        • Advertising & Signage: High-speed processing of 3D acrylic letters and displays.

        • Crafts & Models: Fine detail engraving and cutting for architectural models and gifts.

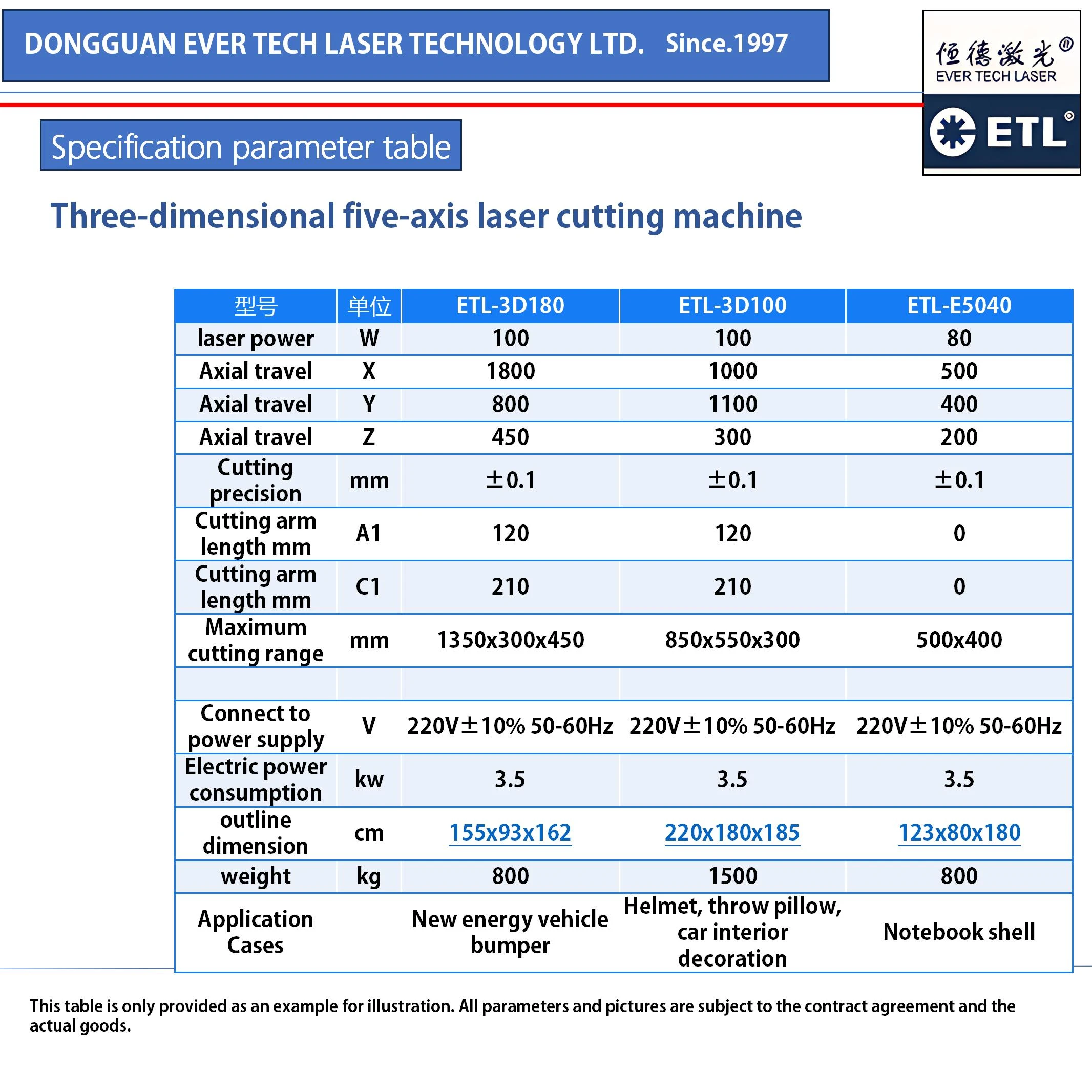

      Core Specifications of ETL-3D100:

      Feature Specification
      Laser Power 100W
      Working Range (X/Y/Z) 1000mm / 1100mm / 300mm
      Maximum Cutting Range 850mm x 550mm x 300mm
      Cutting Precision ±0.1 mm
      Cutting Arm Length A1: 120mm / C1: 210mm
      Power Consumption 3.5 kw
      Machine Weight 1500 kg
      Dimensions 220cm x 180cm x 185cm

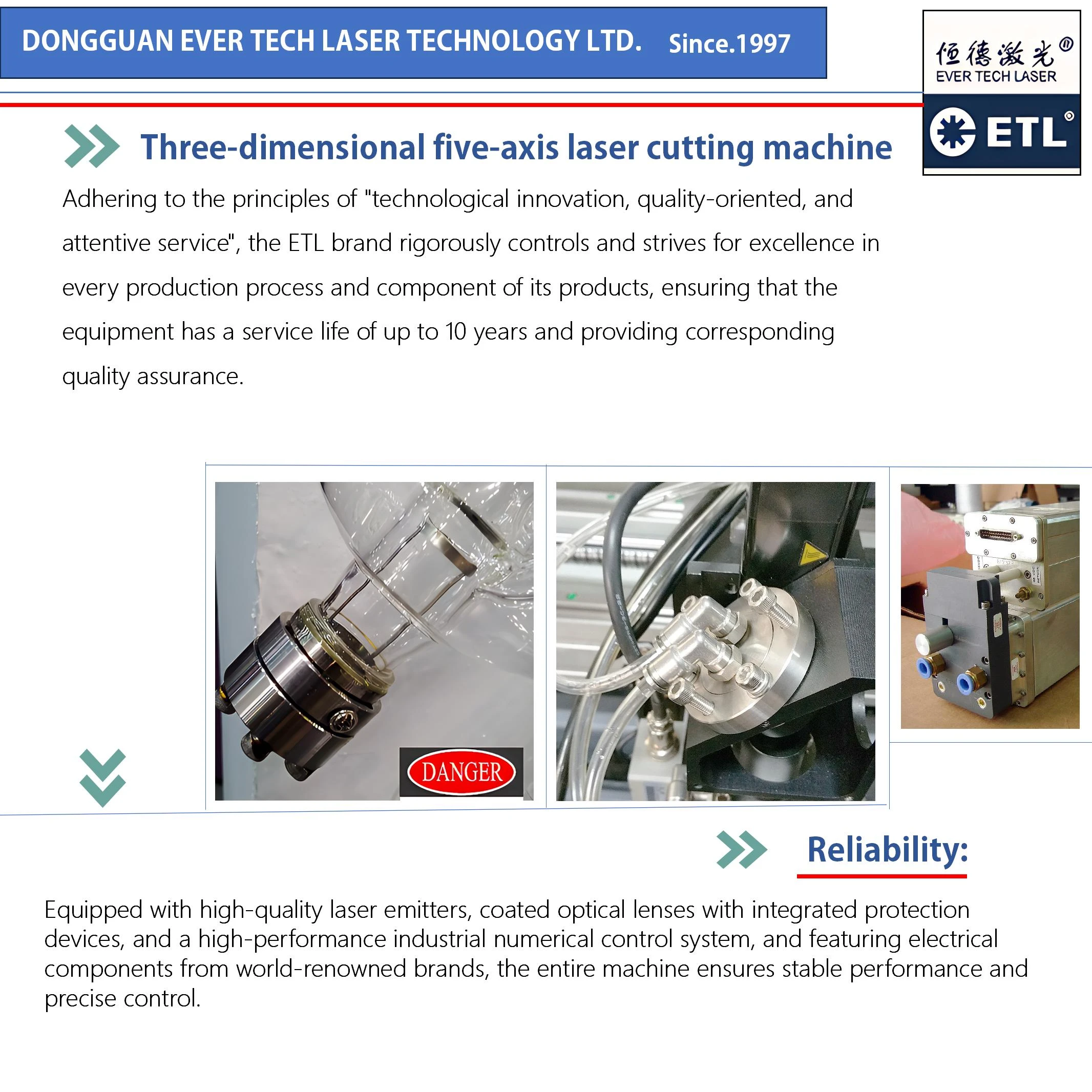

      ETL-3D100 CO2 laser cutting machine with high precision laser tube for non-metal materials.Large format 3D CO2 laser cutter ETL-3D100 featuring automatic focus and high-speed motion system.Acrylic and wood samples engraved by ETL-3D100 CO2 laser engraving cutting machine.Industrial grade CO2 laser cutting equipment ETL-3D100 for small business and factory manufacturing.Close-up of ETL-3D100 CO2 laser head cutting 10mm plywood with clean edges.

      ETL-3D100 CO2 Laser Cutting Machine - FAQ

      Q1: What materials and thicknesses can the ETL-3D100 cut?

      Answer:

      The ETL-3D100 by Ever Tech Laser is a high-performance 100W CO2 laser system optimized for non-metal materials. It provides a cutting precision of ±0.1 mm.

      • Acrylic: Up to 20mm with a polished edge.

      • Wood/MDF: Clean cuts on plywood up to 12-15mm.

      • Other Materials: Effectively processes leather, fabric, rubber, and specialized 3D composite materials.

      • Expert Support: For a specific material test, contact us via WhatsApp: +86 18665189967.

      Q2: What makes the ETL-3D100 better for 3D shapes than standard flatbed lasers?

      Answer:

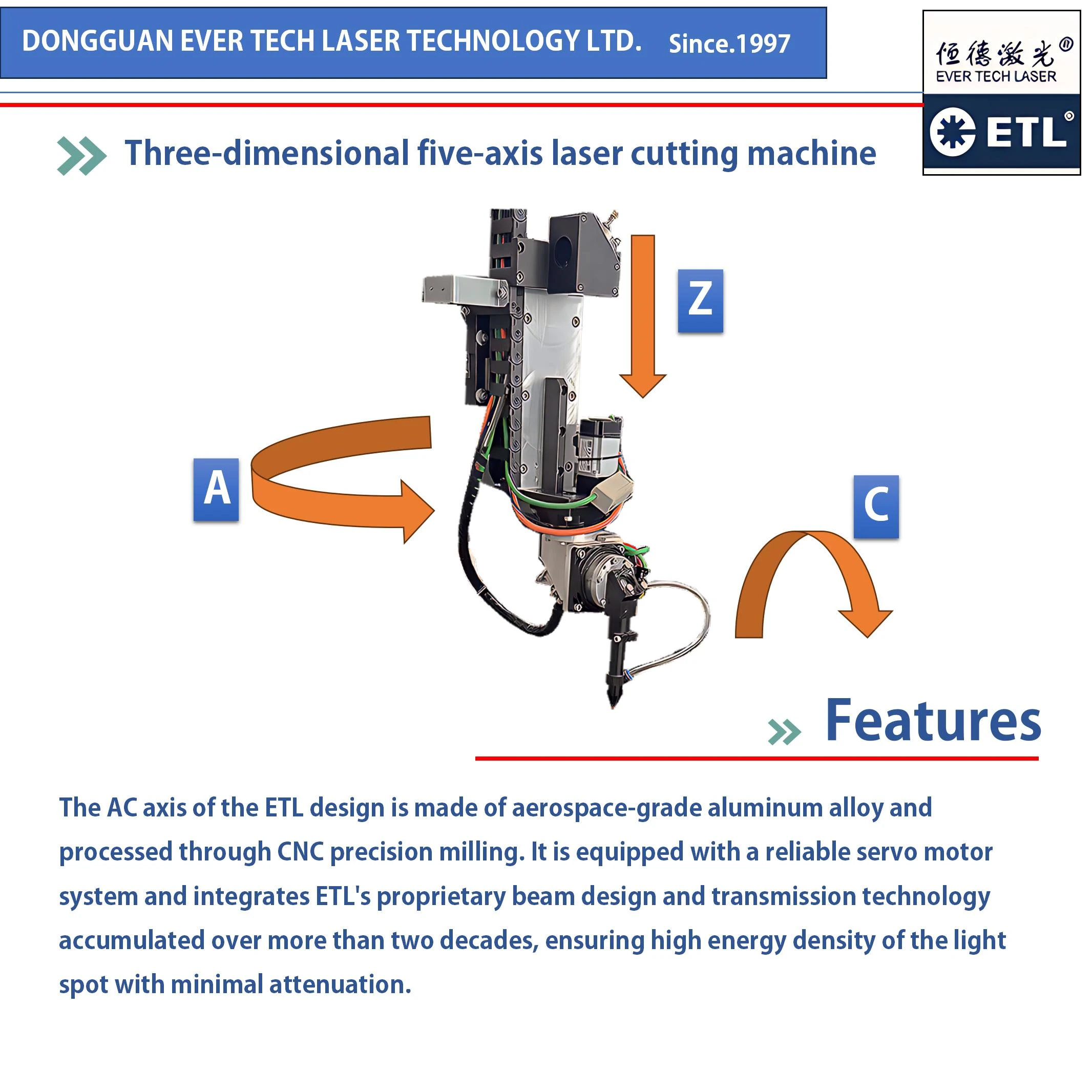

      Unlike traditional 2D cutters, the ETL-3D100 features a advanced three-dimensional five-axis motion system.

      • Versatility: It handles complex curved surfaces like new energy vehicle bumpers, helmets, and car interior decorations.

      • Reach: With a Z-axis travel of 300mm and a specialized cutting arm (A1: 120mm / C1: 210mm), it can reach angles that flatbed machines cannot.

      Q3:What are the installation and power requirements for my factory?

      Answer:

      To ensure the Ever Tech Laser ETL-3D100 operates at peak performance, please verify your facility meets these specs:

      • Power Supply: Standard 220V±10% 50-60Hz.

      • Energy Consumption: Efficient 3.5 kw power usage.

      • Space Requirement: The machine footprint is 220cm x 180cm x 185cm, with a total weight of 1500 kg. We recommend a solid, level concrete floor for installation.

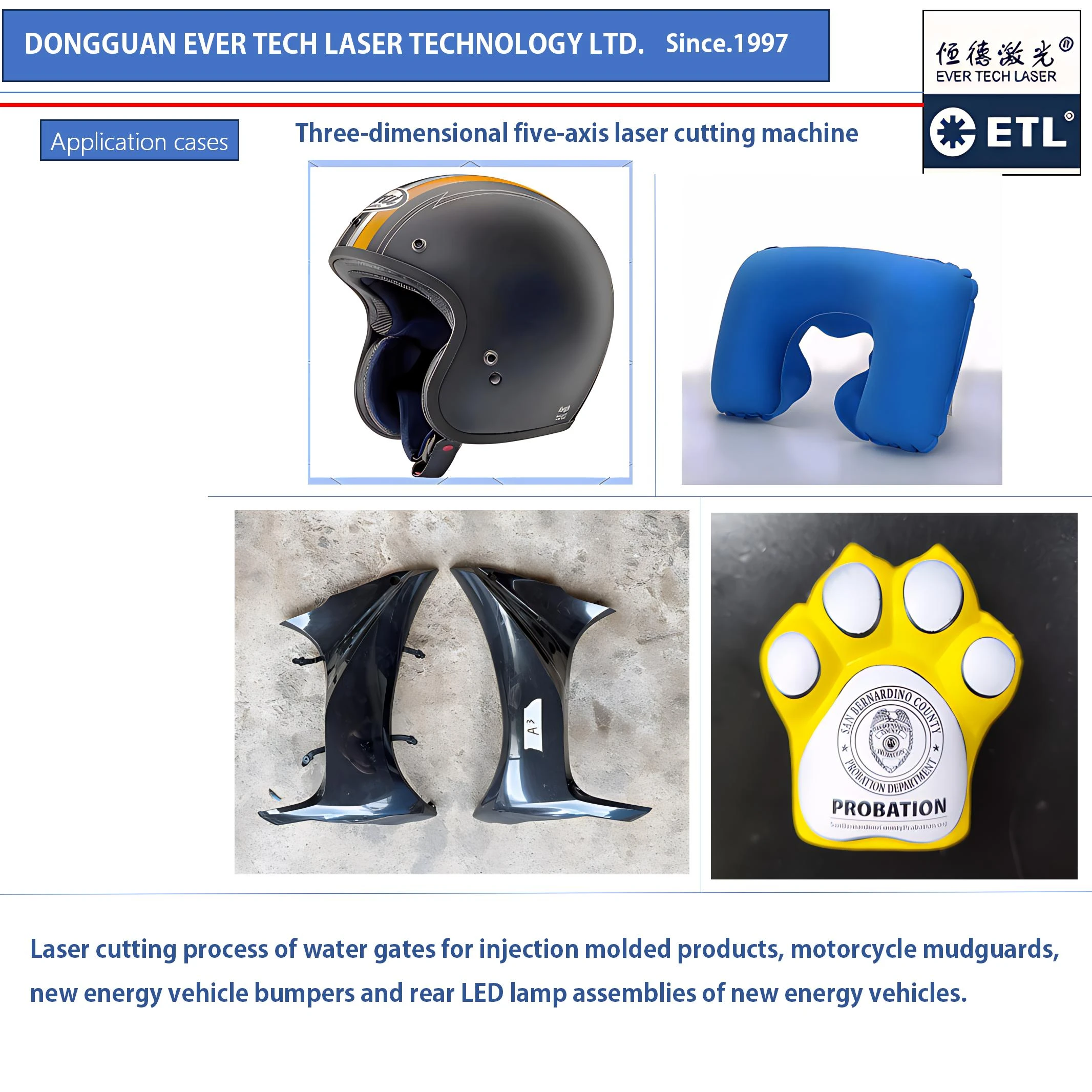

      Q4: Which industries benefit most from the ETL-3D100?

      Answer:

      Ever Tech Laser has designed this model for high-value manufacturing sectors:

      • Automotive: Specialized in 3D trim and bumper processing.

      • Consumer Goods: Perfect for notebook shells, throw pillows, and protective gear.

      • Packaging & Signage: For high-end 3D acrylic displays and architectural models.

      Q5:What kind of software and training does Ever Tech Laser provide?

      Answer:

      We ensure your team is ready for production from day one:

      • Compatibility: The system supports mainstream design files and professional 3D laser path planning software.

      • Training: We provide comprehensive video tutorials and remote technical support to help you master 3D five-axis operations.

      • Inquiry: For technical manuals, please email hdjg@etl-laser.com.

      Q6: How do I get a quote or a live demo for the ETL-3D100?

      Answer:

      Getting started with Ever Tech Laser is easy. We offer personalized consultations based on your production volume and material needs.
