Fiber Laser Cutting Machine ETL-C2513SF

  • Brand：   ETL
  • Model：   ETL-C2513SF
    • The ETL-C2513SF Fibre Laser Cutting Machine is engineered for high-precision metal fabrication. Featuring a 2500x1300mm working area and advanced fiber technology, it delivers exceptional speed and stability for stainless steel, carbon steel, and aluminum. Explore ETL-C2513SF specifications and industrial applications today.

    hdjg@etl-laser.com

    • Description
    • Viedos

      Industrial Fiber Laser Cutting Machine ETL-C2513SF for Steel & Aluminum

          Discover the ETL-C2513SF, a high-performance fibre laser cutting machine. Key features: compact single-platform design, high-efficiency laser source, and precision CNC control. Specialized in thin-to-medium metal plate processing, it balances high-speed velocity with micron-level accuracy for modern manufacturing.

      Applicable Materials & Industries

      Here is the professional English translation for the ETL-C2513SF Fibre Laser Cutting Machine content, optimized for B2B global marketing and search engine indexing.

      Applicable Materials

      The ETL-C2513SF is engineered for high-speed, high-precision processing of various conductive and non-conductive metals:

      • Carbon Steel: 0.5mm – 20mm+ (depending on laser power).

      • Stainless Steel: 0.5mm – 10mm+ with a clean, burr-free finish.

      • Aluminum & Alloys: Excellent performance even on highly reflective surfaces.

      • Brass & Copper: Ideal for precision electrical components and decorative parts.

      • Galvanized & Alloy Sheets: Widely used for durable sheet metal fabrication.

      Application Industries

      With its 2500x1300mm "golden ratio" compact footprint, this machine is the preferred choice for:

      • Advertising & Signage: Metal letter cutting and high-end display racks.

      • Sheet Metal Fabrication: Custom chassis, electrical cabinets, and precision parts.

      • Kitchenware & Appliances: Stainless steel cookware and industrial ventilation systems.

      • Automotive & Aerospace: Lightweight components and mold auxiliary processing.

      • Elevator & Decoration: Elevator panels, metal screens, and architectural art.

      Core Specifications of ETL-2513SF:

      The ETL-C2513SF utilizes industrial-grade components to ensure long-term stability and micron-level accuracy.

      Feature Specification
      Model ETL-C2513SF
      Working Area 2500mm x 1300mm (8.2ft x 4.2ft)
      Laser Power 1000W / 1500W / 2000W / 3000W (Optional)
      Laser Source Raycus / Max / IPG (Global Warranty)
      Control System CypCut / CypOne (Multilingual Support)
      Cutting Head Raytools / WSX (Autofocus Optional)
      X/Y Positioning Accuracy ±0.03 mm
      Repeatability ±0.02 mm
      Max. Acceleration 1.0G - 1.2G
      Max. Moving Speed 80m/min - 100m/min
      Transmission System High-precision Rack & Pinion (YYC/LAPPING)
      Servo Motor & Driver Yaskawa (Japan) / Delta (Taiwan)
      Cooling System Dual-temperature Industrial Chiller (S&A/Hanli)

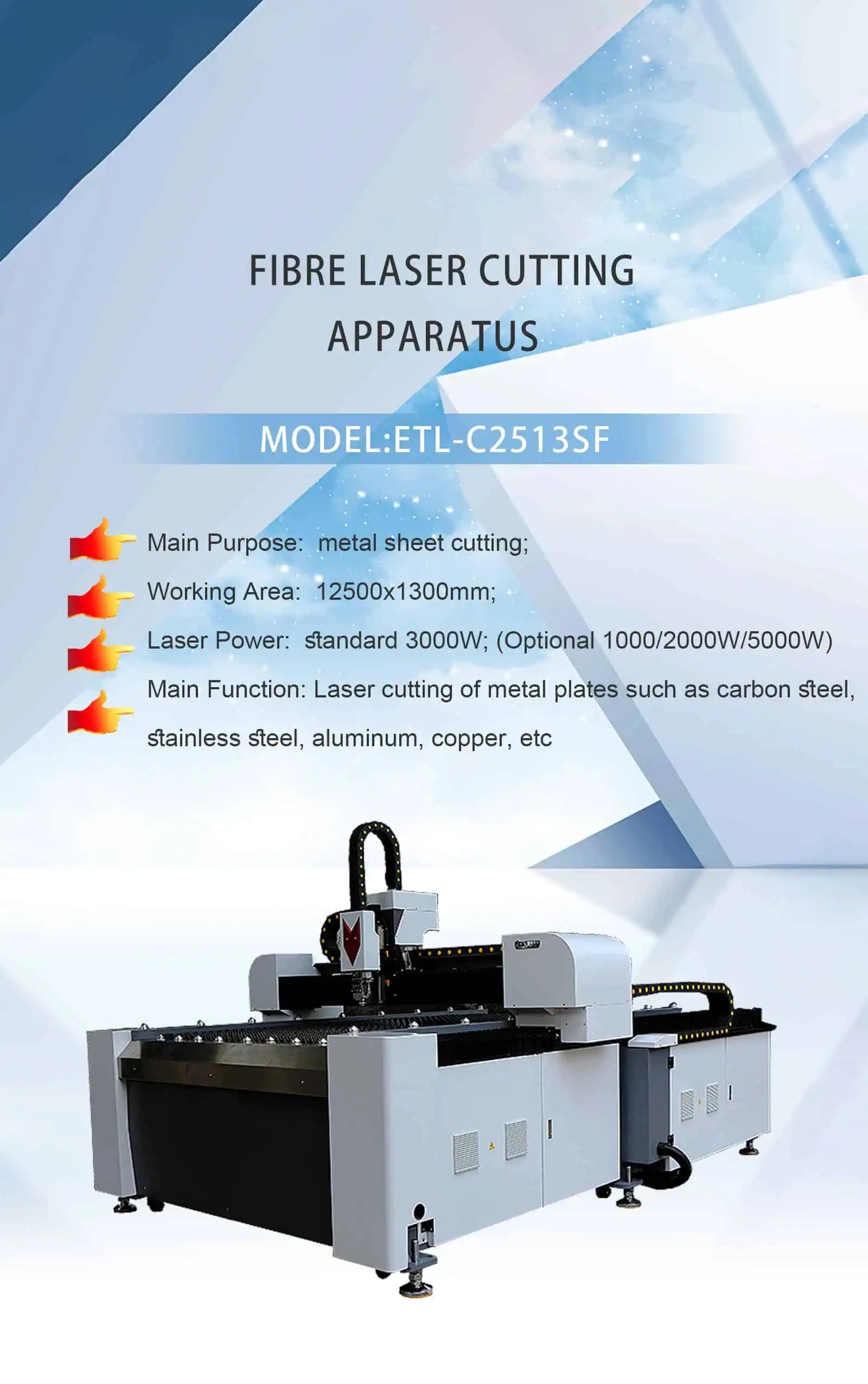

      ETL-C2513SF industrial fibre laser cutting machine with 2500x1300mm working area for high-precision metal sheet fabrication.High-speed metal cutting process on stainless steel sheet using ETL-C2513SF CNC fibre laser cutter.Close-up of the Raytools autofocus laser cutting head installed on the ETL-C2513SF fiber laser machine.Precision-cut metal parts and intricate signage samples produced by the ETL-C2513SF fibre laser cutting equipment.CypCut CNC control system interface for the ETL-C2513SF 1500W fibre laser cutter, optimizing production workflow.

      Fiber Laser Cutting Machine - FAQ

      Q1: How much does a fiber laser cutting machine cost and what is the ROI?

      The investment for a quality fiber laser machine typically ranges from $15,000 to over $200,000. At Ever Tech Laser, we focus on providing high-ROI solutions.

      Economic Models (1kW-2kW): $15,000 – $35,000.

      Performance Models (3kW-6kW): $40,000 – $80,000.

      ROI: Our clients typically see a full return on investment within 6 to 18 months due to high speed and minimal waste.

      For a custom quote, contact us at:hdjg@etl-laser.com or WhatsApp:18665189967.

      Q2: What is the maximum cutting thickness for ETL Laser machines?

      Answer: Cutting capacity depends on the laser wattage selected for your Ever Tech Laser equipment:

      1500W: Up to 6mm Stainless Steel, 16mm Carbon Steel.

      3000W: Up to 12mm Stainless Steel, 22mm Carbon Steel.

      6000W+: Capable of high-speed cutting for 25mm+ heavy plates.

      Q3: Which core components are used in Ever Tech Laser (ETL) machines?

      A: We ensure reliability by using industry-leading components:

      Laser Source: Raycus, Max, or IPG.

      Cutting Head: Raytools or WSX with autofocus options.

      Control System: CypCut/CypOne for precision CNC management.

      Drive System: Yaskawa or Delta servo motors for micron-level accuracy.

      Q4:What industries can benefit from the ETL-C2513SF and other ETL models?

      Answer: Ever Tech Laser machines are widely used in:

      Sheet Metal Fabrication: Cabinets and enclosures.

      Advertising: Intricate metal signage and logos.

      Kitchenware: Stainless steel appliances.

      Industrial Parts: Automotive, aerospace, and elevator manufacturing.

      Q5: What are the maintenance requirements for an ETL Fiber Laser?

      Answer: Our machines are designed for low maintenance. Essential tasks include:

      Daily: Quick check of the protective lens and gas pressure.

      Weekly: Lubrication of the high-precision guide rails.

      Consumables: Replacing nozzles and ceramic rings as needed.

      Ever Tech Laser provides 24/7 remote technical support via WhatsApp: [18665189967] to keep your production running.

      Q6: What facility preparation is needed for installation?

      Answer: To install your Ever Tech Laser machine, you will need:

      Space: A level floor (The compact ETL-C2513SF requires approx. 4m x 3m).

      Power: Stable 3-phase electricity.

      Assist Gas: Access to Oxygen, Nitrogen, or Compressed Air.

      Support: Our team provides detailed pre-installation guides upon order.
