Co2 Laser Cutting Machine ETL-C13090

  • Brand：   ETL
  • Model：   ETL-C13090
    • The ETL-C13090 CO2 Laser Cutting Machine is a versatile and high-precision solution designed for both cutting and engraving a wide array of non-metallic materials. With a generous 1300mm x900mm working area, the ETL-C13090 is perfect for processing acrylic, wood, leather, and textiles with exceptional detail and smooth edges. Its robust design, coupled with an intuitive control system, makes it the go-to choice for advertising, signage, and craft industries looking for reliable performance and industrial-grade accuracy.

    hdjg@etl-laser.com

    • Description
    • Viedos

      CO2 Laser Cutting Machine: ETL-C13090

          The ETL-C13090 is an industrial-grade 1300x900mm CO2 laser cutting machine designed to optimize precision and efficiency for non-metal fabrication. It features a robust 100W-150W laser source and a motorized Z-axis, providing a high-performance solution for cutting and engraving acrylic, wood, and leather. Ideal for signage, crafts, and apparel industries seeking reliable, high-speed production.

      Applicable Materials & Industries

      Applicable Materials:

      • Cutting & Engraving:

        • Wood Products: Plywood, MDF, Solid Wood, Bamboo, Balsa.

        • Plastics & Polymers: Acrylic (Plexiglass), Double-color Board, ABS, Plastic Film, PET.

        • Textiles & Leather: Natural Leather, Synthetic Leather, Denim, Industrial Fabrics, Non-woven Fabric.

        • Paper Products: Corrugated Paper, Cardboard, Specialty Art Paper.

      • Engraving Only (Non-metal surface marking):

        • Glass, Marble, Granite, Ceramics, Coated Metals, and Anodized Aluminum.

      Application Industries:

      • Advertising & Signage: Commercial signage, channel letters, and POS displays.

      • Arts & Crafts: Wooden puzzles, personalized giftware, and architectural scale models.

      • Furniture & Decor: Intricate veneer inlays, furniture cutouts, and interior decorations.

      • Packaging & Printing: Box prototyping, die-board processing, and template making.

      Core Specifications of ETL-13090:

      Key Specifications Details
      Model ETL-C13090
      Working Area 1300mm x 900mm (51" x 35")
      Laser Type Sealed CO2 Glass Laser Tube
      Laser Power 100W / 130W / 150W (Optional)
      Worktable Design Blade Slat & Honeycomb Table (Dual-table compatible)
      Pass-through Feature Front and Back doors for processing over-length materials
      Max Engraving Speed 0 - 1000mm/s
      Positioning Accuracy < ±0.01mm
      Z-Axis Travel 200mm Motorized Up/Down Platform
      Software Compatibility RDWorks, LightBurn (Supports AI, DXF, PLT, BMP)
      Control System Ruida High-Performance DSP Controller

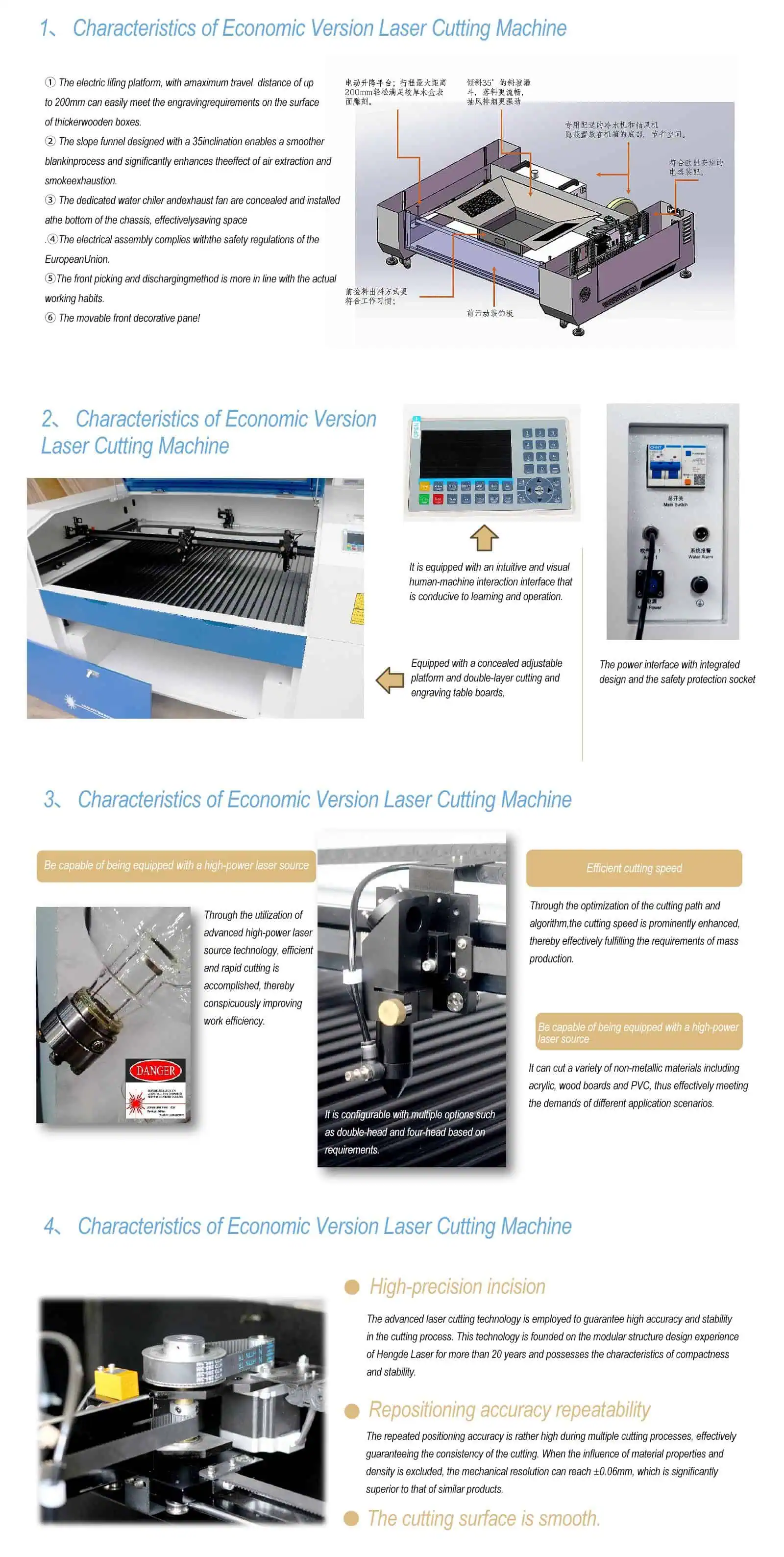

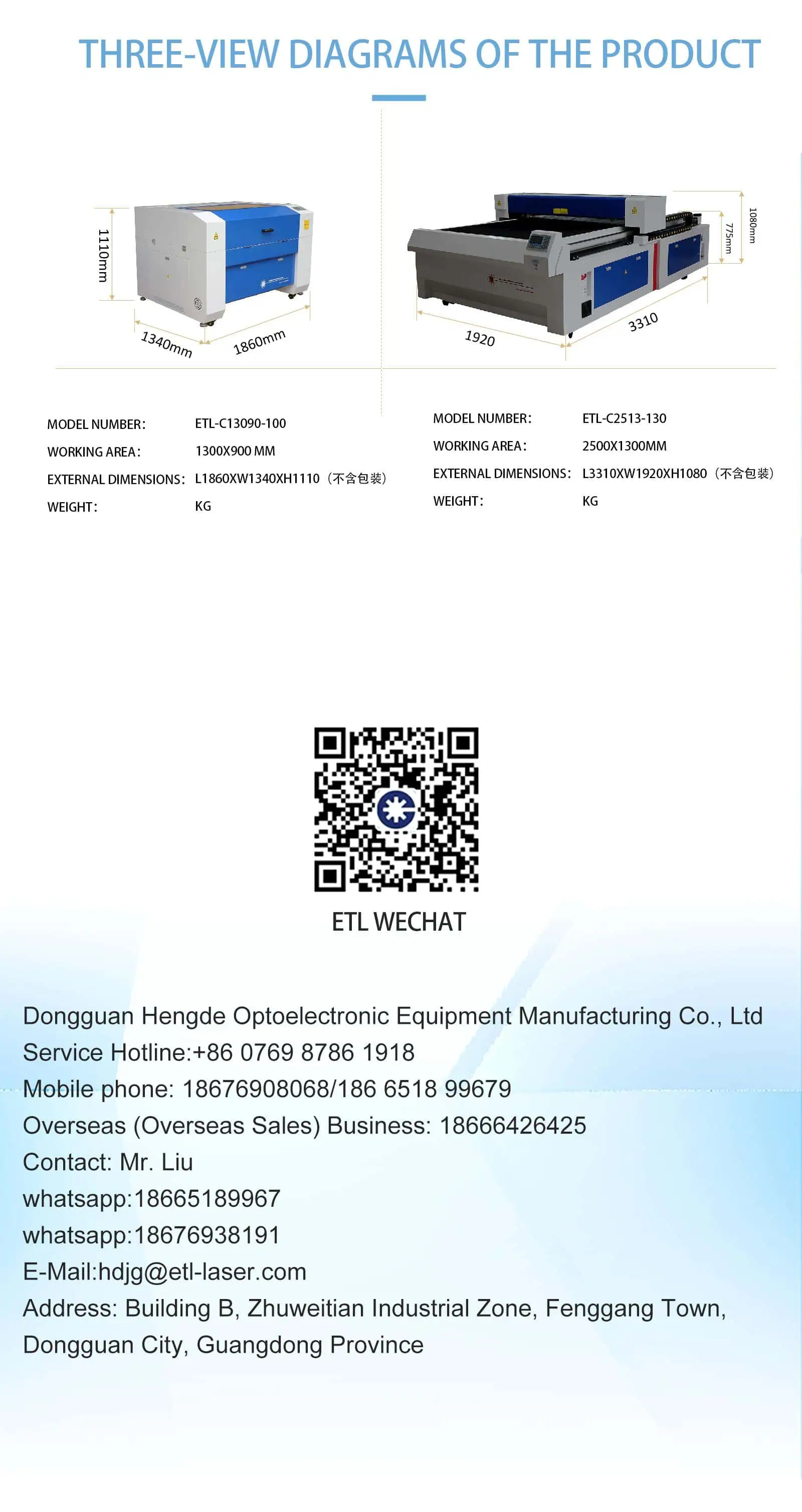

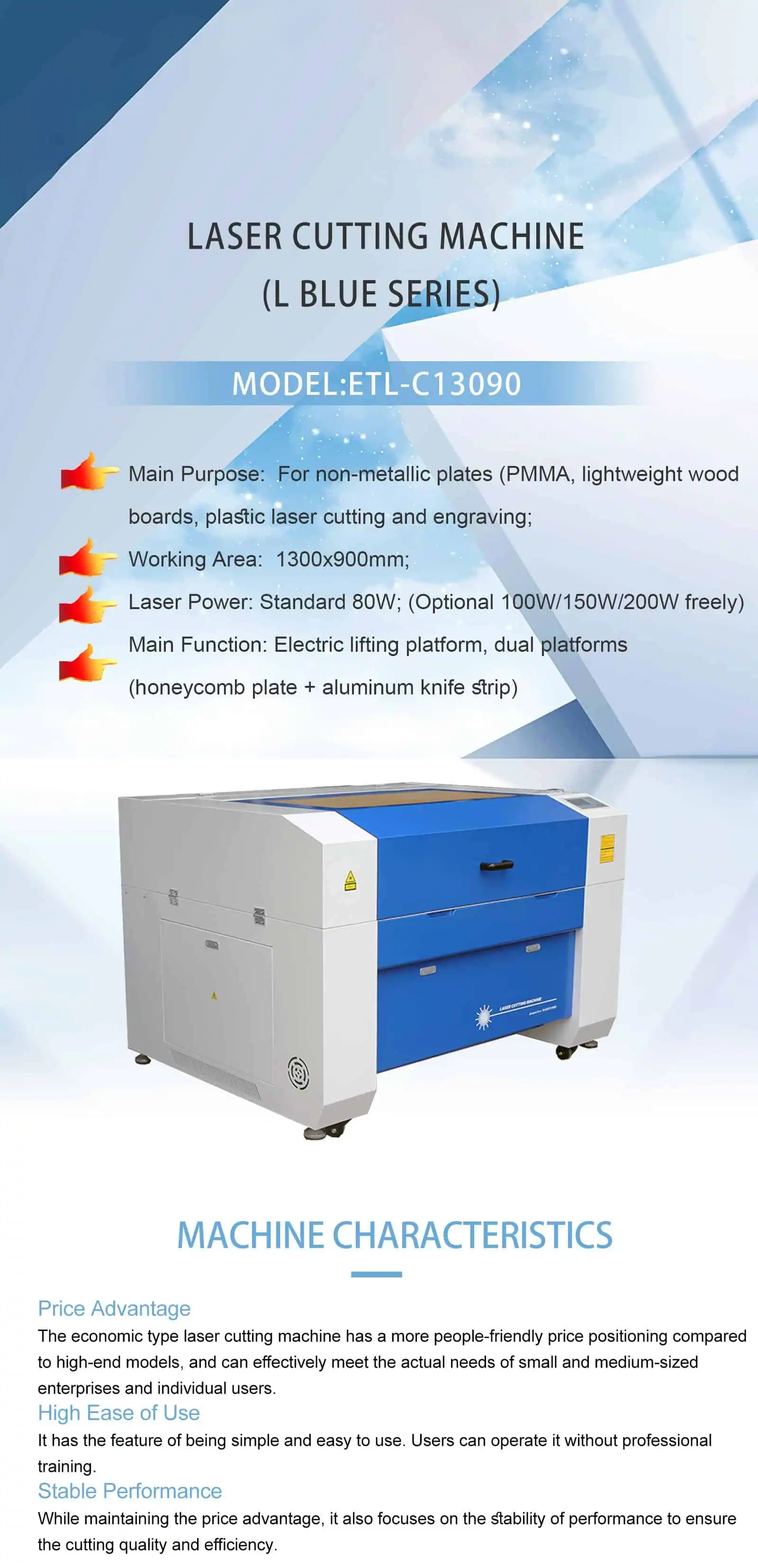

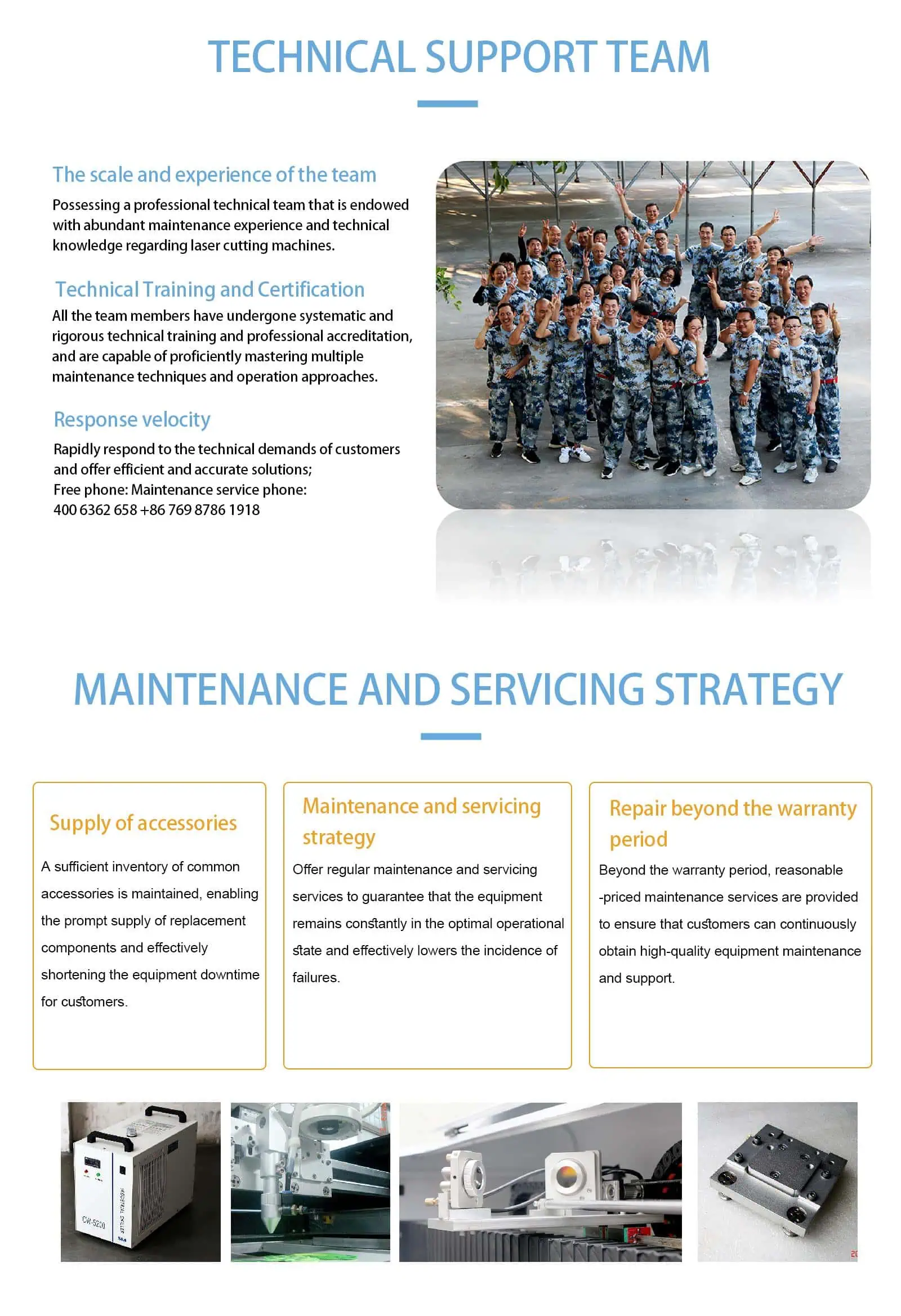

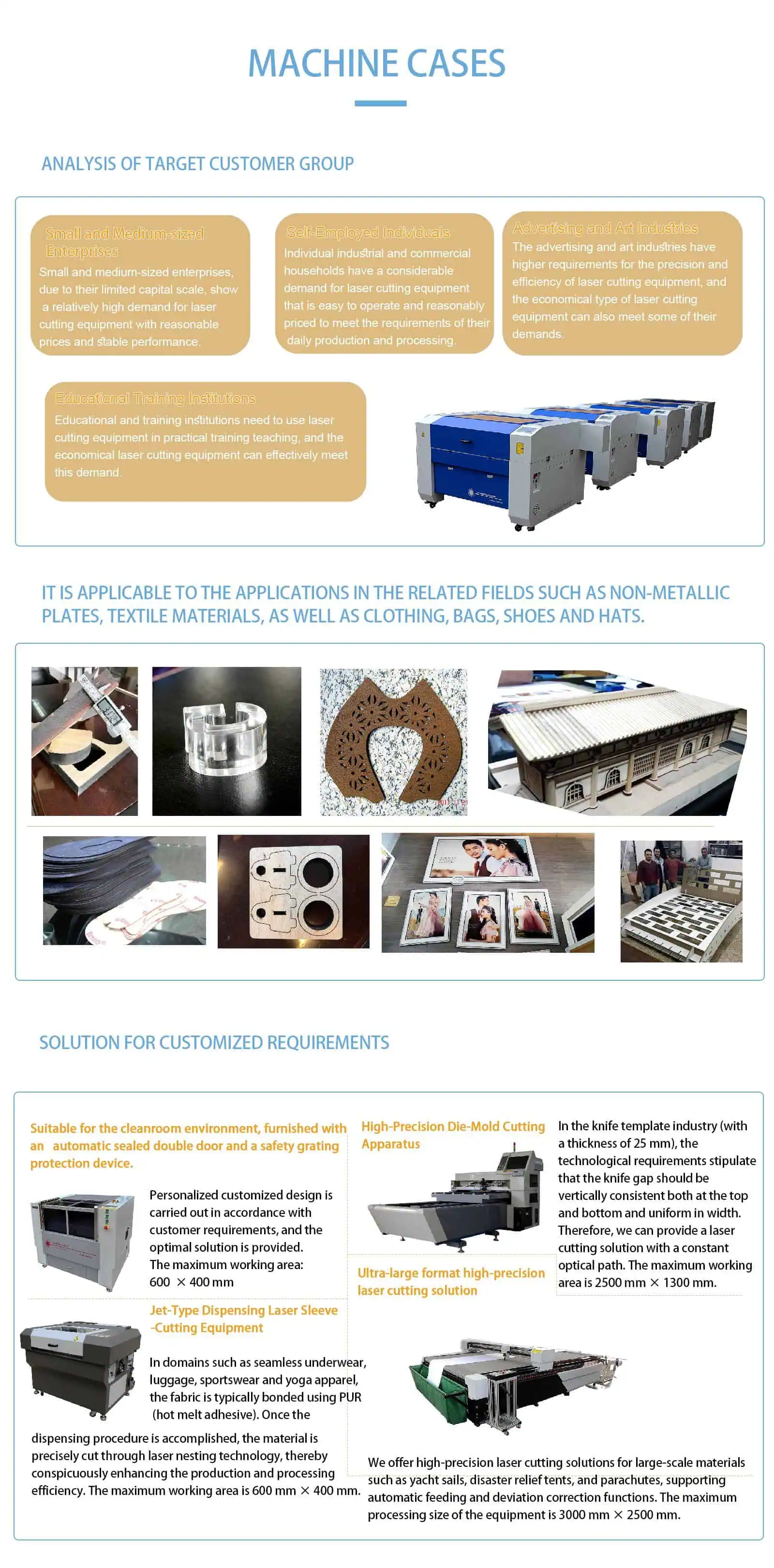

      ETL-C13090 industrial CO2 laser cutting machine featuring a 1300x900mm large worktable, fully enclosed safety housing, and transparent observation windows.Precision cutting and engraving on acrylic sheets using the ETL-C13090 laser machine, ideal for signage production and non-metal material processing.Close-up of the ETL-C13090 CO2 laser cutter internal structure, highlighting the high-precision laser head, industrial linear guide rails, and high-power laser tube mount.Intricate wooden crafts and acrylic signs processed by the ETL-C13090 laser cutter, showcasing clean-cut edges and smooth engraving textures.An ETL-C13090 multi-functional laser cutting system operating in a factory workshop, efficiently handling bulk leather cutting tasks.

      CO2 Laser Cutting Machine - FAQ

      Q1: What materials can the ETL-C13090 cut and engrave?

      Answer:

      The ETL-C13090 is a versatile industrial solution designed specifically for non-metal materials. Below is a quick reference for its processing capabilities:

      Material Type Cutting Capability Engraving Capability
      Acrylic (Plexiglass) Up to 20mm (150W) High-detail frosting
      Wood / MDF / Plywood Up to 15mm (130W) Deep or surface etching
      Leather / Fabric Excellent (Clean edges) Precision patterns
      Glass / Stone No Surface frosting only
      Anodized Aluminum No Permanent marking

      Q2: What are the core technical specifications of this model?

      Answer:

      The Ever Tech Laser (ETL) C13090 is built for stability and high-speed production. Key specs include:

      • Work Area: 1300mm x 900mm (51" x 35").

      • Laser Power: Genuine CO2 Glass Tube (100W / 130W / 150W options).

      • Control System: Industry-standard Ruida DSP Controller.

      • Drive System: High-precision Leadshine Stepper Motors and industrial linear guide rails.

      • Z-Axis: Motorized up/down platform (200mm travel) for processing thick materials or adding a rotary axis.

      How much does the ETL-C13090 cost and what are the configurations?

      Answer:

      Pricing for the ETL-C13090 varies based on your specific production requirements. Standard configurations start with the laser source and blade table, while optional upgrades include:

      • Power Upgrades: Higher wattage for faster cutting of thick materials.

      • Cooling Systems: Industrial S&A water chillers (CW-5000/5200).

      • Rotary Attachment: For engraving cylindrical objects like bottles or pipes.

      • Contact us for a detailed quote:hdjg@etl-laser.com

      Q4: Is the machine compatible with LightBurn software?

      Answer:

      Answer:Yes. Every Ever Tech Laser C13090 is fully compatible with LightBurn, the industry’s most popular laser software for Mac and Windows. It also supports RDWorks (included for free). You can directly import files in formats such as AI, DXF, PLT, BMP, and JPG from software like CorelDraw or AutoCAD.

      Q5: Why choose Ever Tech Laser (ETL) over other 13090 laser brands?

      Answer:

      While many 1390 machines look similar, Ever Tech Laser focuses on "Industrial Endurance." Our machines feature:

      • Heavy-Duty Chassis: Reinforced frame to prevent vibration and ensure long-term accuracy.

      • Premium Optics: High-quality US-imported focus lenses and molybdenum mirrors for maximum beam power.

      • Safety First: Fully enclosed design with fire-resistant observation windows and emergency stop protocols.

      Q6: What after-sales support and warranty do you provide?

      Answer:

      At Ever Tech Laser, we understand that downtime costs money. Our support package includes:

      • Warranty: 1-year comprehensive warranty (Laser tube warranty depends on the specific model/brand).

      • Technical Support: 24/7 remote assistance via video call or TeamViewer.

      • Maintenance: We provide detailed video tutorials for mirror alignment, tube replacement, and lens cleaning.
